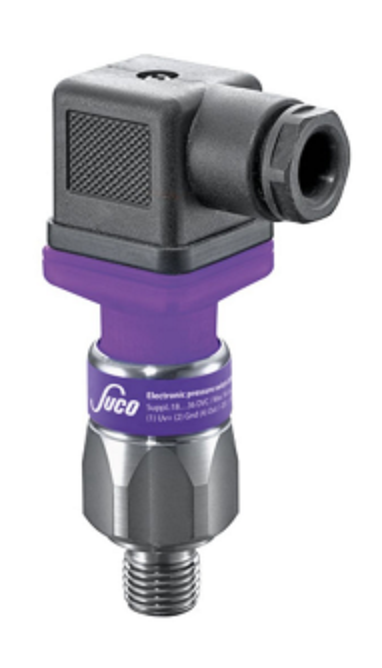

    Full scale 1% Accuracy Pressure Transmitter Model 0602

    Suco

    0602-20041-1-013

    Full scale 1% Accuracy Pressure Transmitter Model 0602

    $313.20 AUD

    Adjustment
    Suco - Full scale 1% Accuracy Pressure Transmitter Model 0602
    • Full Scale 1% Accuracy
    • 303 Stainless Steel
    • Thick Film Ceramic Sensor Technology
    • Seal Type: NBR
    • Din 43650-A
    • IP 65
    • Output Voltage: 4 to 20mA ( 2 Wire )
    • Supply Voltage: 9.6 to 32 VDC
    • Built in Overvoltage, Short-circuit & Reverse Polarity protection
    • Mechanical Life: 5,000,000 pulsations at rise rates to 1bar/ms max
    • Vibration Resistance: Half sine 500 m/s2, 11ms ( Din EN 60068-2-6 )
    • Shock Resistance: 20g, 4-2000Hz ( Din EN 60068-2-27 )
    • 1/4" BSP male with O'ring seal ( G1/4" - DIN 3852-E )
