    C6029C

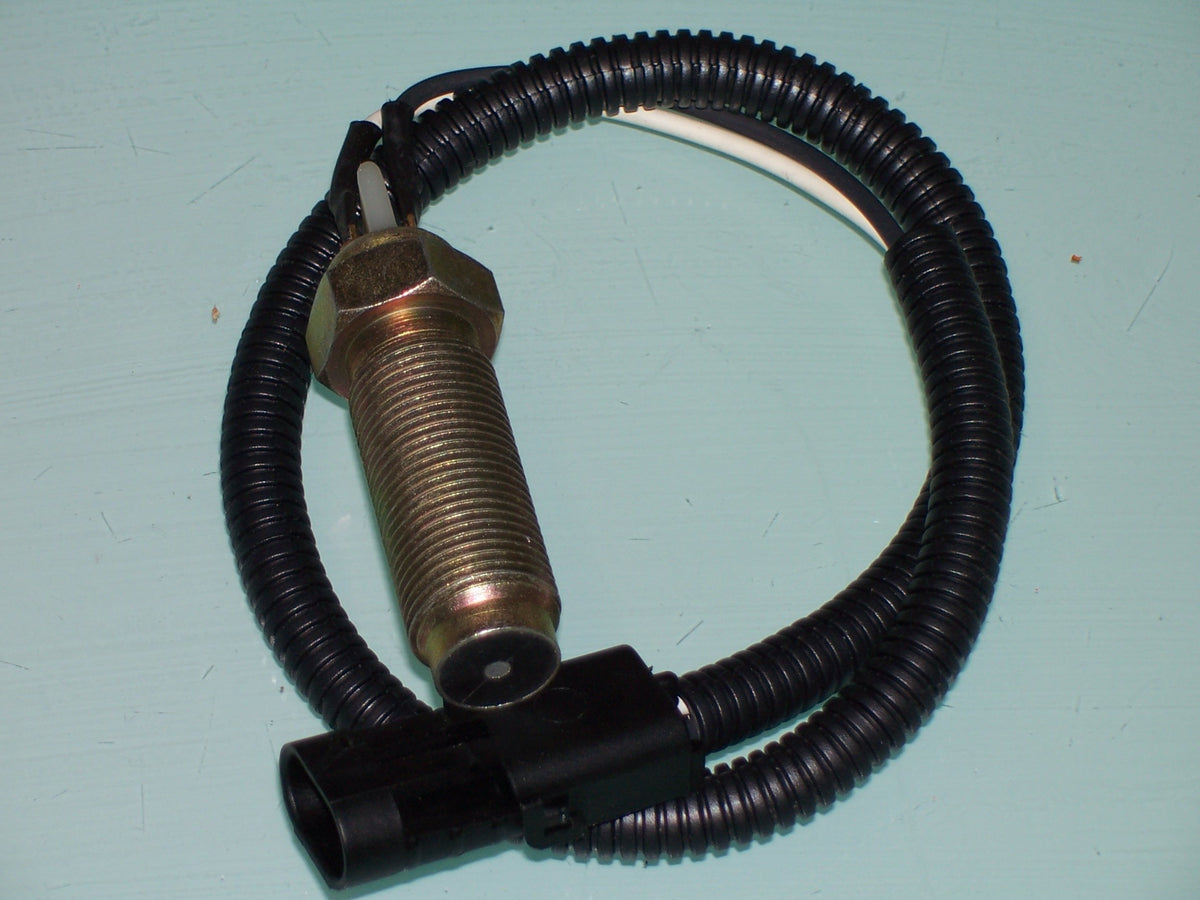

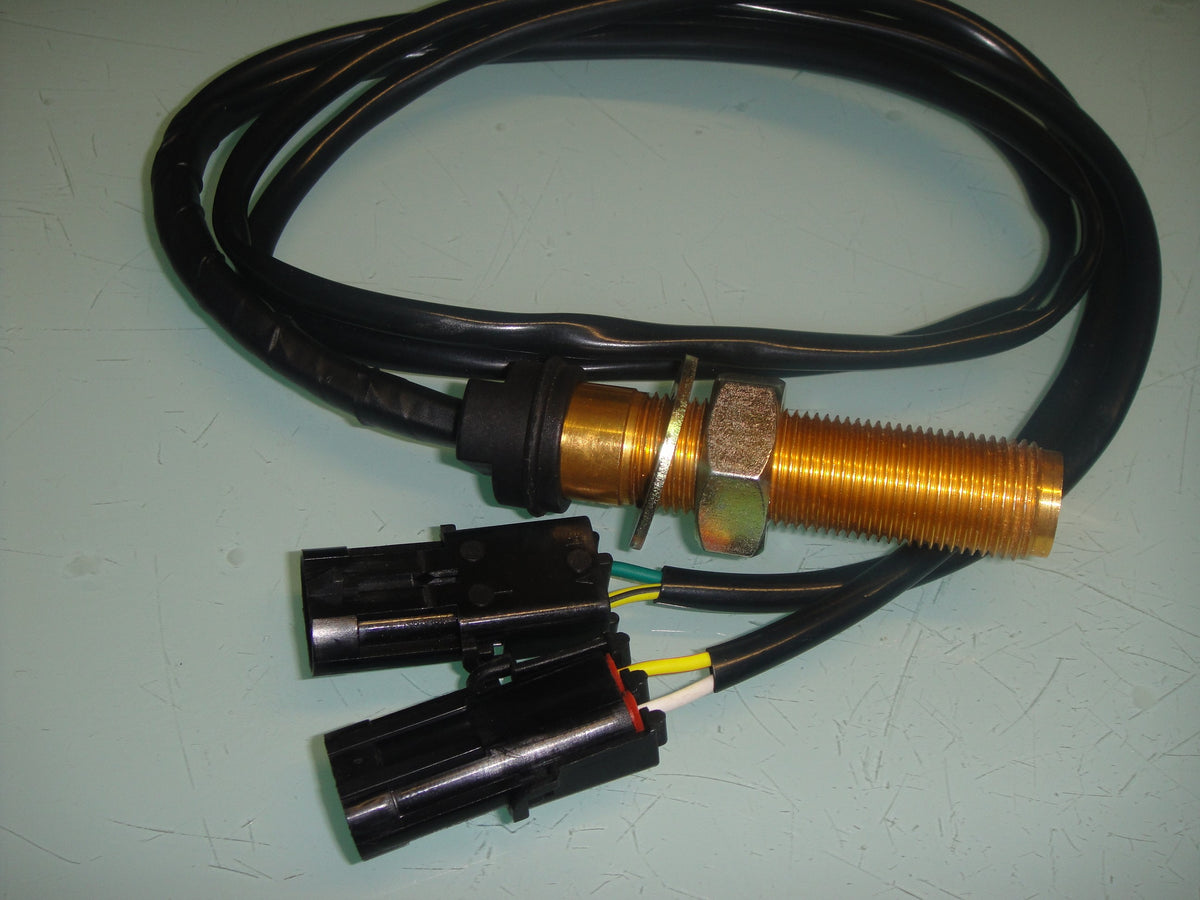

    Magnetic Pick-up Speed Sensor- 3/4x16 UNF

    Output

    Speed Sensor

    Also Known as an "inductive" sender this device is commonly used for Speedometers and Tachometers. Inductive senders utilise a coil & permanent magnet which produces a signal when the proximity of any ferrous metal is detected in an oscillating form - such as the passing of the teeth on a flywheel ring gear.

    • Factory replacement for most Eaton RoadRanger 18 Speed Transmissions
    • Single or Dual Output
    • 600ohm sine wave dual output sensor 80mm deep Thread with 800cm wire
    • Thread connection 3/4”x16UNF
    • We can supply a large range of speed sensors to suit most makes and models, if you don't see your sensor listed please call
