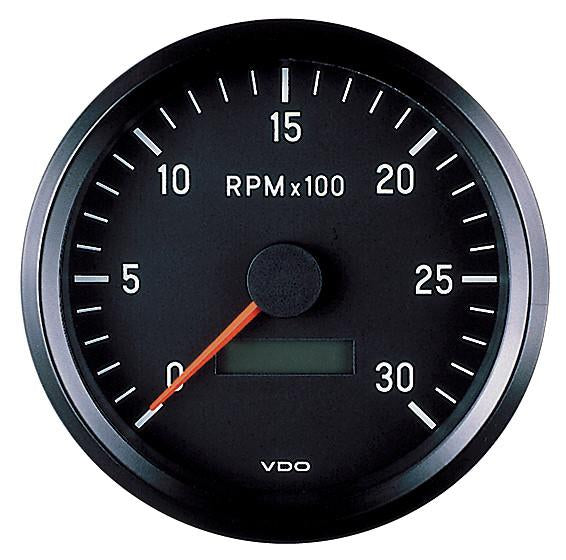

The programmable tachourmeter w/LCD can be used with most engine electronic control ignitions with tachometer output terminal, standard coil ignition, alternator signal, and 12V square wave applications
Non-resettable engine hourmeter is displayed on LCD
Total hours can be programmed at time of order, upon request.
12/24V
Suitable for most petrol and diesel engines. Adjustable through LCD and reset button
Field programmable to 1, 2, 3, 4, 5, 6, 8 or 12 cyl./4-stroke, 1, 2, 3 or 4 cyl./2-stroke ignition and alternator pick-up ("W" terminal)
Also suitable for signal from generator or inductive sender unit. Incorporated hour meter shows true engine hours. Operating hours to 99,999.99. Pulse range 0.5-200 pulses per rev
Flood lit Illumination, 12V
Note: 8 pin plug kit part no. 340.824 optional. Not included in kit
Illumination 12V included. For 24V application use globe #240.053 (x2 required)
